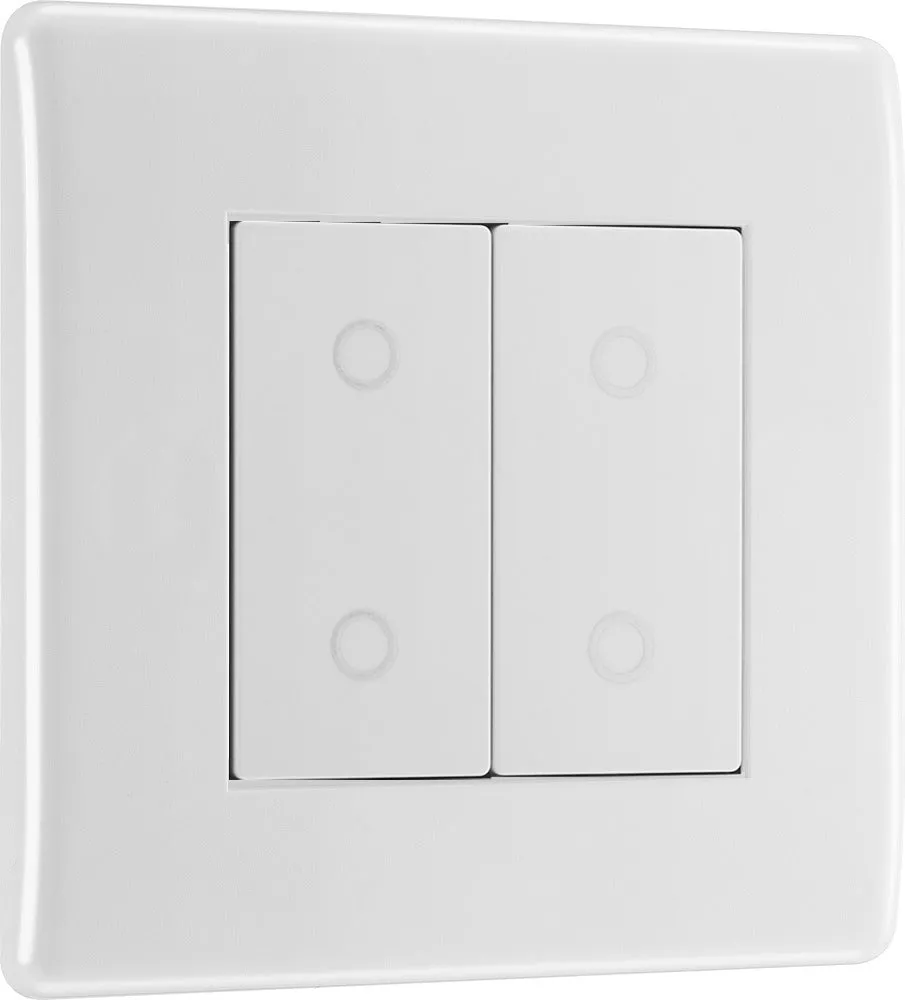

BG 8TDS2W-K White Round Edge 2-Way Secondary 200W Double Touch Dimmer Switch

WHITE MOULDED wiring accessories available in a range of Round Edge finishes

• Flush power LED and inlaid red rocker indicator
• Screw covers for sleek appearance
• Modern rounded profile
• Angled in-line colour-coded captive terminals
• Twin Earth

White Moulded is available in two stocked finishes

This item is Double 2 Way Secondary

• Intelligent trailing edge dimmers have a lower minimum load than leading edge dimmers, offering greater compatibility for LED, Halogen, CFL and incandescent lamps
• Soft start brings the lights to a set level in around 1 second and extends the life of lamps
• Overload protection prevents failure if you mistakenly connect your dimmer to too many lights or transformers, and will turn the lights down or off until the load is corrected
• Smooth dimming control
• Silent operation - no noise when dimming
• Support for lower wattage lamps eliminates flicker
• Touch dimmer control
• Captive backed out terminal screws prevent screw loss
• Silent operation - no noise when dimming
• Manufactured to BS EN 60669-2-1
• Terminal capacity 3x1.0mm², 2x1.5mm² & 1x2.5mm²
• Minimum mounting box depth - 25mm

Load Rating (Max/Min per module)

• Dimmable LED 5-100W
• Tungsten/Incandescent 5-200W
• Halogen 20-200W
• Dimmable Compact Fluorescent (CFL) 5-100W

Installation Note

• Master can only be used in a one way switching circuit where one switch controls a light (or circuit) i.e. on or off.
• For two way switching, where a light (or circuit) is controlled by two switches, the master touch dimmer must be used with a secondary touch dimmer at the secondary location.
• A master touch dimmer cannot be used in combination with a traditional light switch or any other dimmer switch.
